Forté A-BUS Local Input Modules
AB-315
Channel Vision On-Wall Docking Station
Made for iPod®
Replaces the AB-313 with new improved design.
It can be used as a local source input and with the
Forte IRK-4RJ (iSolutions hub) as a central source input.
The iPod & iPhone can be controlled via the Forte A-BUS ABR-43 learning, remote keypad with wall cradle, providing fast track forward, backward, pause/play whilst in its dock.
iPod DOCK: LIM (local input module)
Unit is located between the A-BUS hub and wall module
Ideal for the bedroom, kitchen, study, workshop
Or as a Direct Source input on AB-62 & ABK-4RJ A-Bus Hubs
TERMINALS: 110 punch down or RJ-45
SIZE: Profile: 31mm, mounting depth: 40mm
PLATE SIZE: (2 gang) 124 x 130 mm (3 gang) 171 x 130 (WH)
Supplied with screwless wall plate
Please note new mounting instructions.
iPod* not included
For Australian sale only.

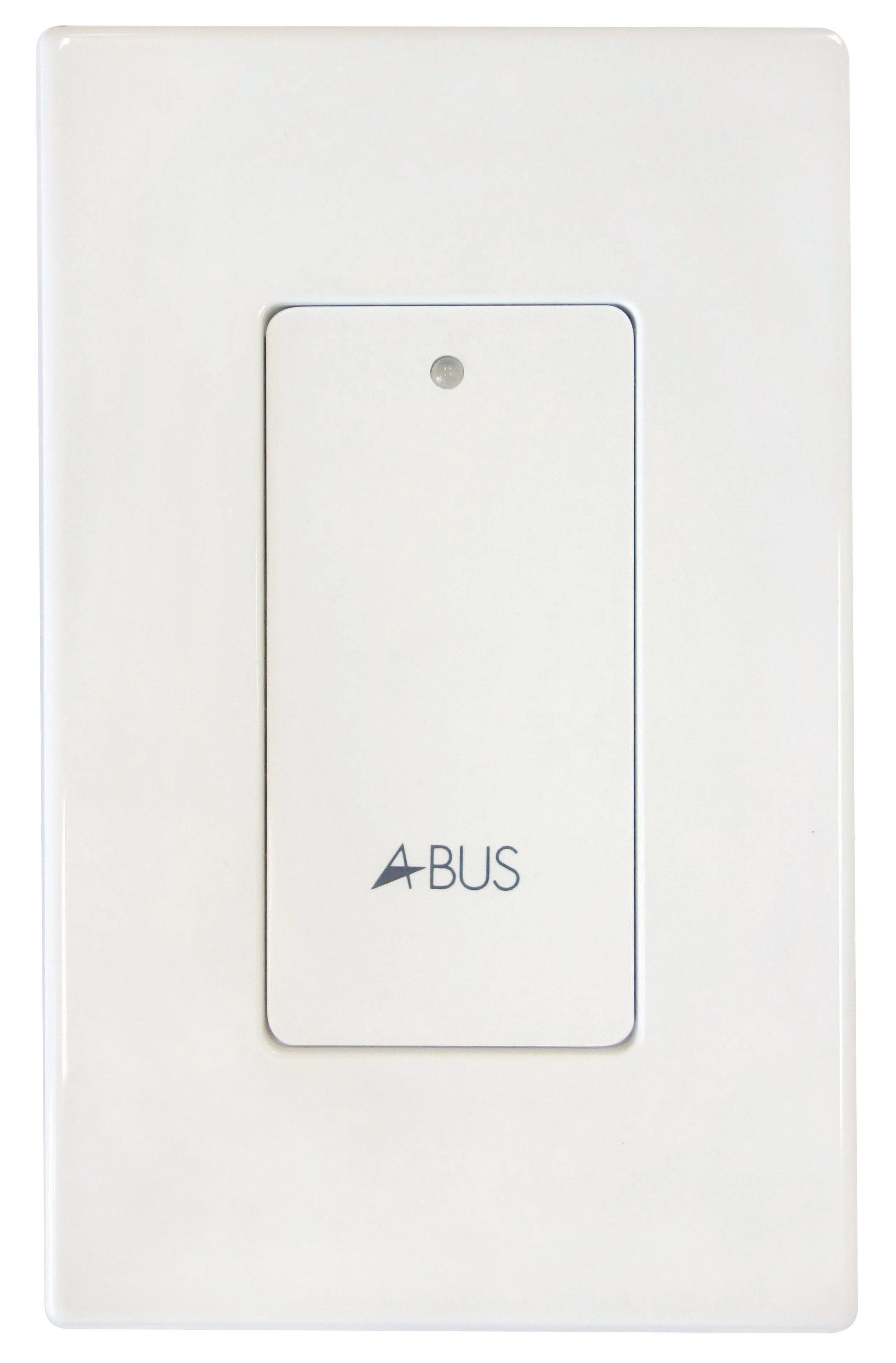

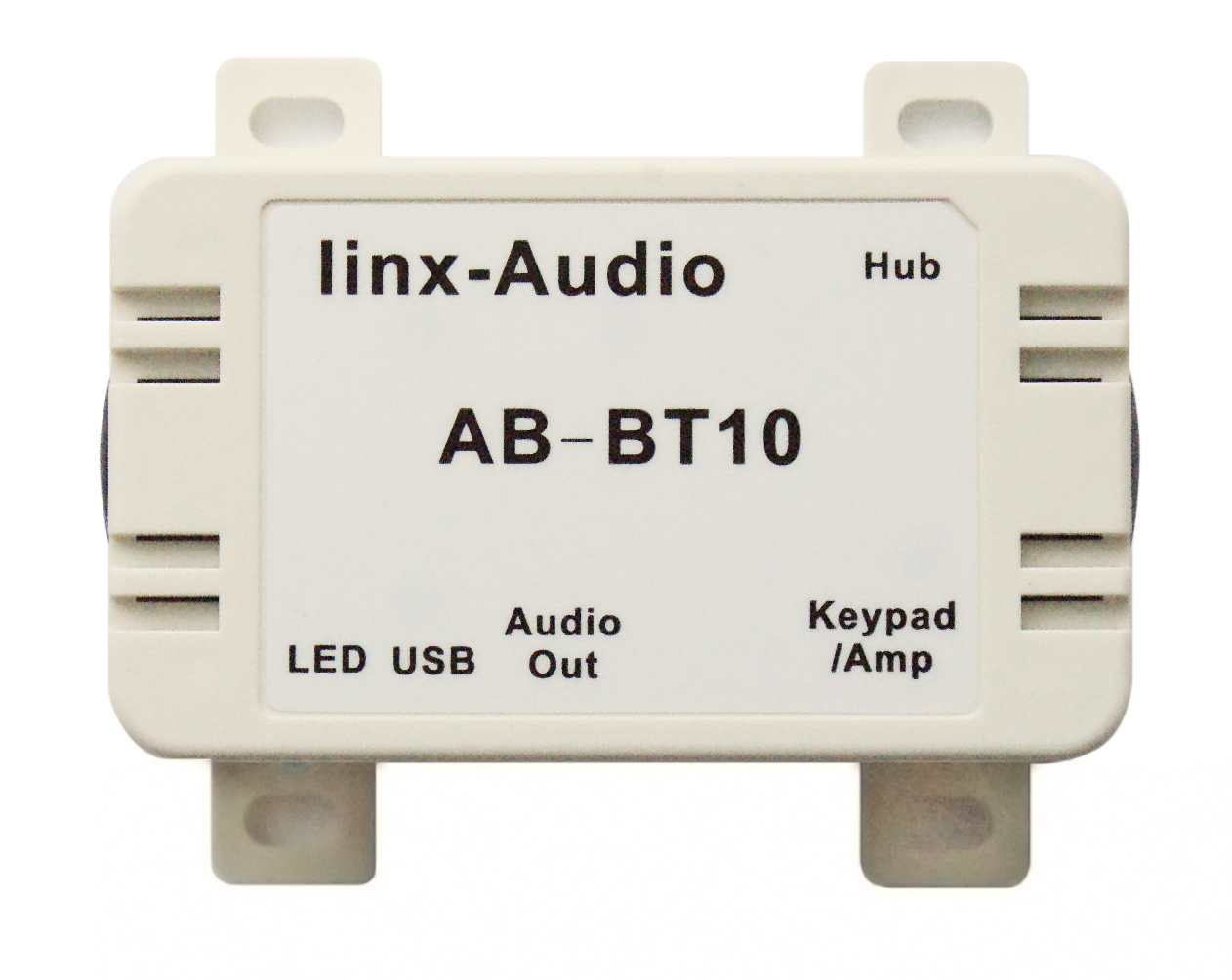

AB-BT10
Resi-Linx A-BUS Bluetooth connectivity
for local source input
INPUTS: RJ45 Input from system
IN/OUTPUT: RJ45 Output to Keypad / Amplifier
INDICATOR: Blue LED Indicator
Pairs to your iPad, iPhone, iPod touch or other Bluetooth enabled device
Range up to 15m
Connects to PC via Mini USB (lead supplied)

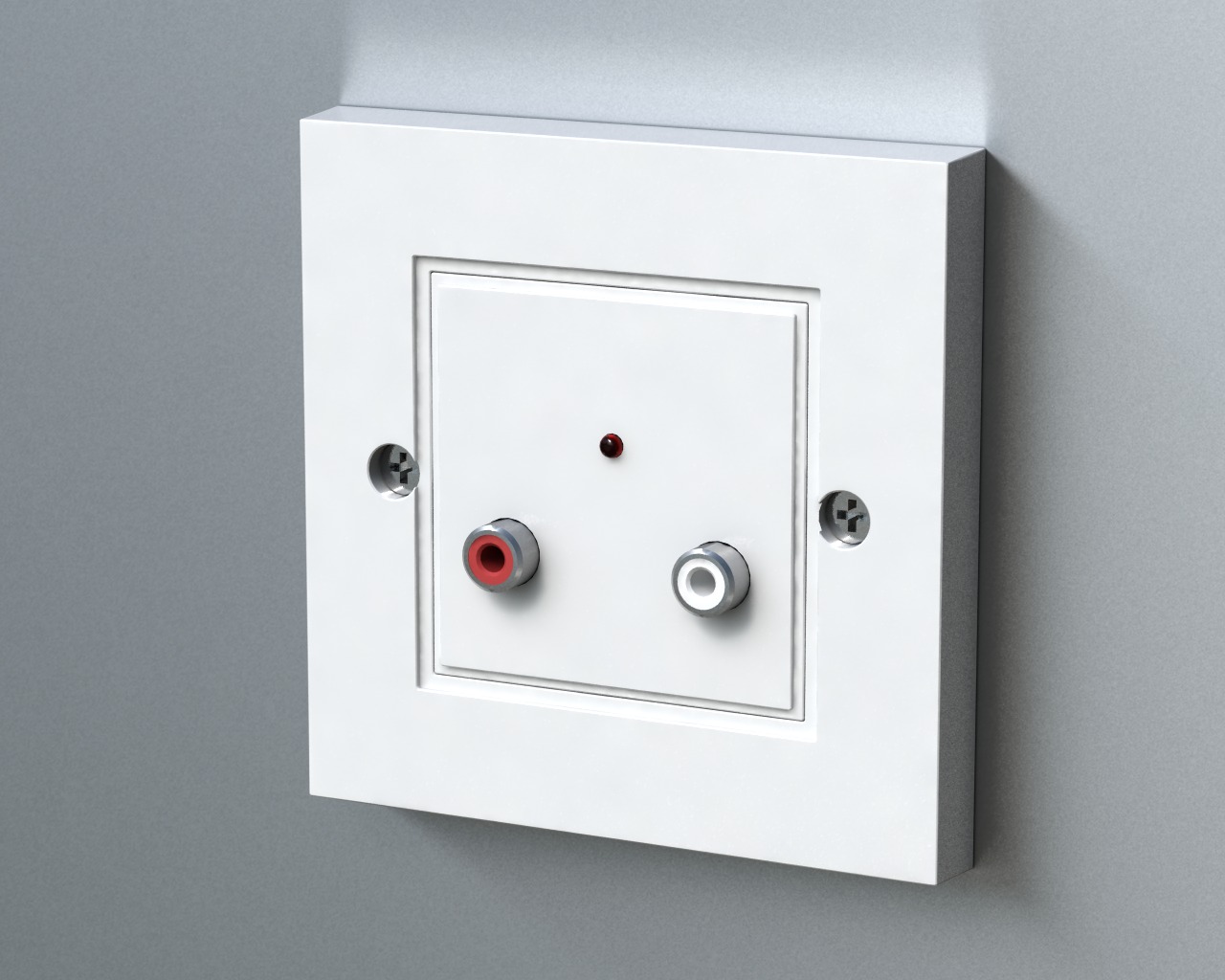

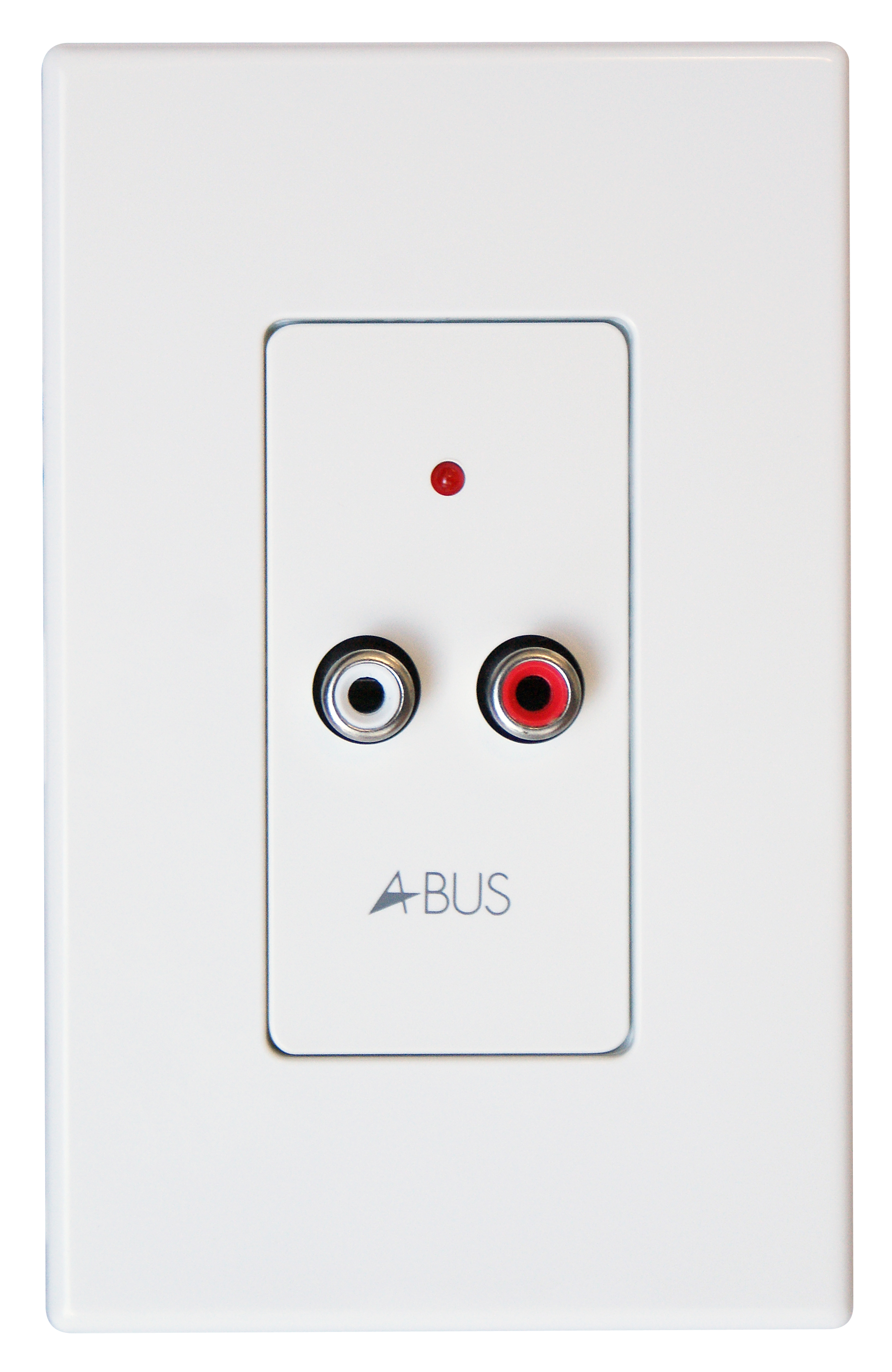

AB-70
Local Input Module
Allows input of local audio source in any room
IR: None
INPUTS: One pair RCA line level
INDICATOR: Local input LED
DELAY TIME: 30 - 50 seconds
IN/OUTPUT: RJ-45 connections on rear
SIZE: Front projection: 19mm, mounting depth: 34mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate
AB-313Discontinued - see AB-315
Channel Vision A-BUS iPod* Dock
iPod DOCK: LIM (local input module)
Unit is located between the A-BUS hub and wall module
Ideal for the bedroom, kitchen, study, workshop
TERMINALS: 110 punch down or RJ-45
SIZE: Profile: 12mm, mounting depth: 55mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate
iPod* not included
For Australian sale only.
AB-301
Channel Vision A-BUS Local or Main Source Input Module
IR: 2 out
INPUTS: One pair RCA line level
INDICATOR: Status line
DELAY TIME: 20 sec
IN/OUTPUT: RJ-45 for main source / 110 punch-down for local input
SIZE: Front projection: 19mm, mounting depth: 34mm
PLATE SIZE: 75 x 116 mm (WH) Supplied with screwless wall plate
For Australian sale only.
