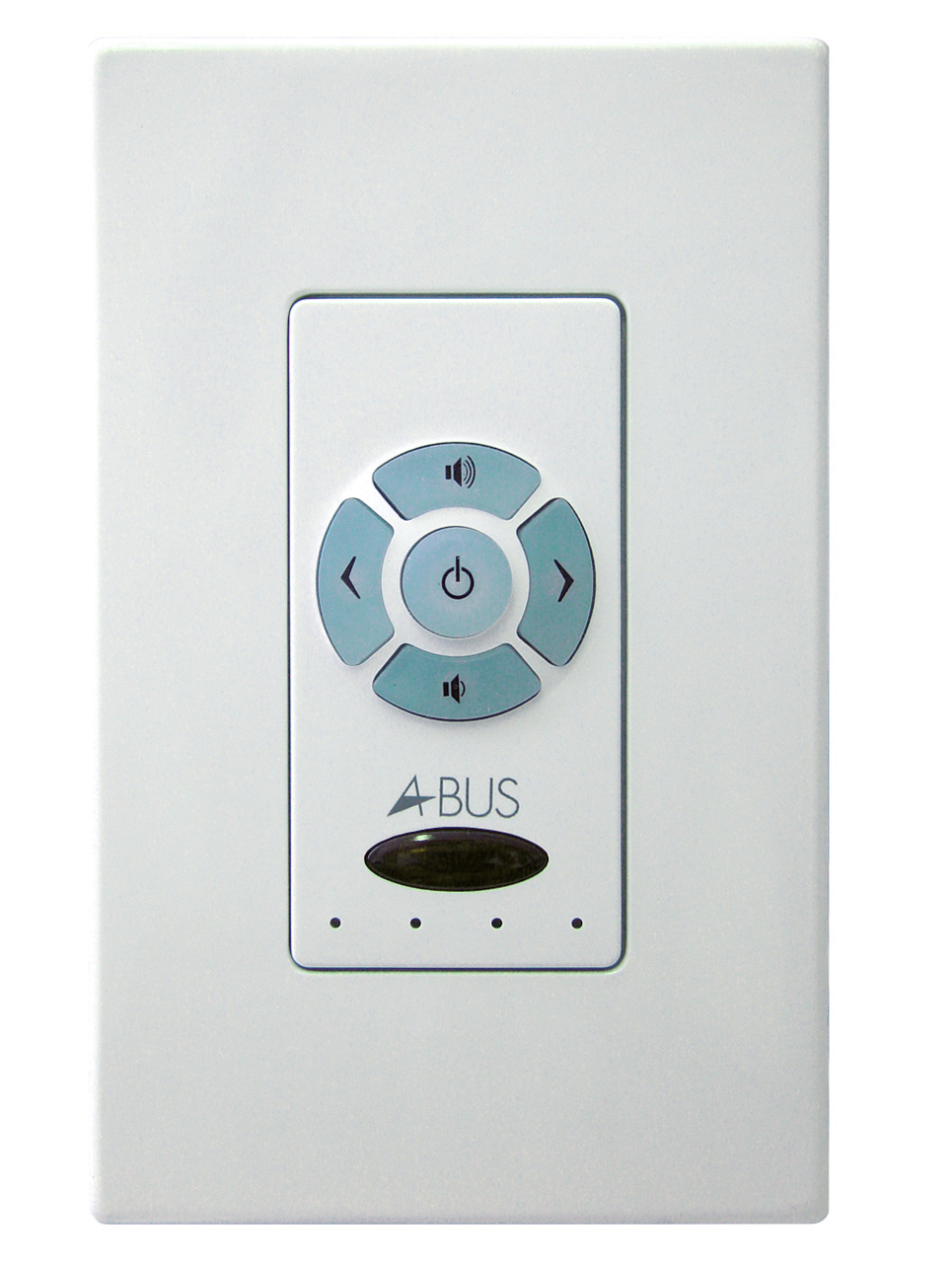

Forté A-BUS Modules
AB-45
Multi-Source Volume Control Module
CONTROL: Touch button and remote volume control
“Local On / Off, All Off” and “Source Select” buttons
IR: Repeating with confirmation LED
SPEAKERS: Drives one pair of speakers (4 - 8 ohms)
STATUS: Muting facility with indicator LED
INPUT: RJ-45
OUTPUT: screw terminal (up to 14 gauge)
SIZE: Profile: 13mm, mounting depth: 55mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate
AB-45P
Multi-Source Volume Control Module
CONTROL: Touch button and remote volume control
“Local On / Off, All Off” and “Source Select” buttons
IR: Repeating with confirmation LED
SPEAKERS: Drives one pair of speakers (4 - 8 ohms)
STATUS: Muting facility with indicator LED
INPUT: RJ-45
OUTPUT: screw terminal (up to 14 gauge)
SIZE: Profile: 13mm, mounting depth: 55mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate
COLOUR: Platinum with black insert
AB-45B
Multi-Source Volume Control Module
CONTROL: Touch button and remote volume control
“Local On / Off, All Off” and “Source Select” buttons
IR: Repeating with confirmation LED
SPEAKERS: Drives one pair of speakers (4 - 8 ohms)
STATUS: Muting facility with indicator LED
INPUT: RJ-45
OUTPUT: screw terminal (up to 14 gauge)
SIZE: Profile: 13mm, mounting depth: 55mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate
COLOUR: black

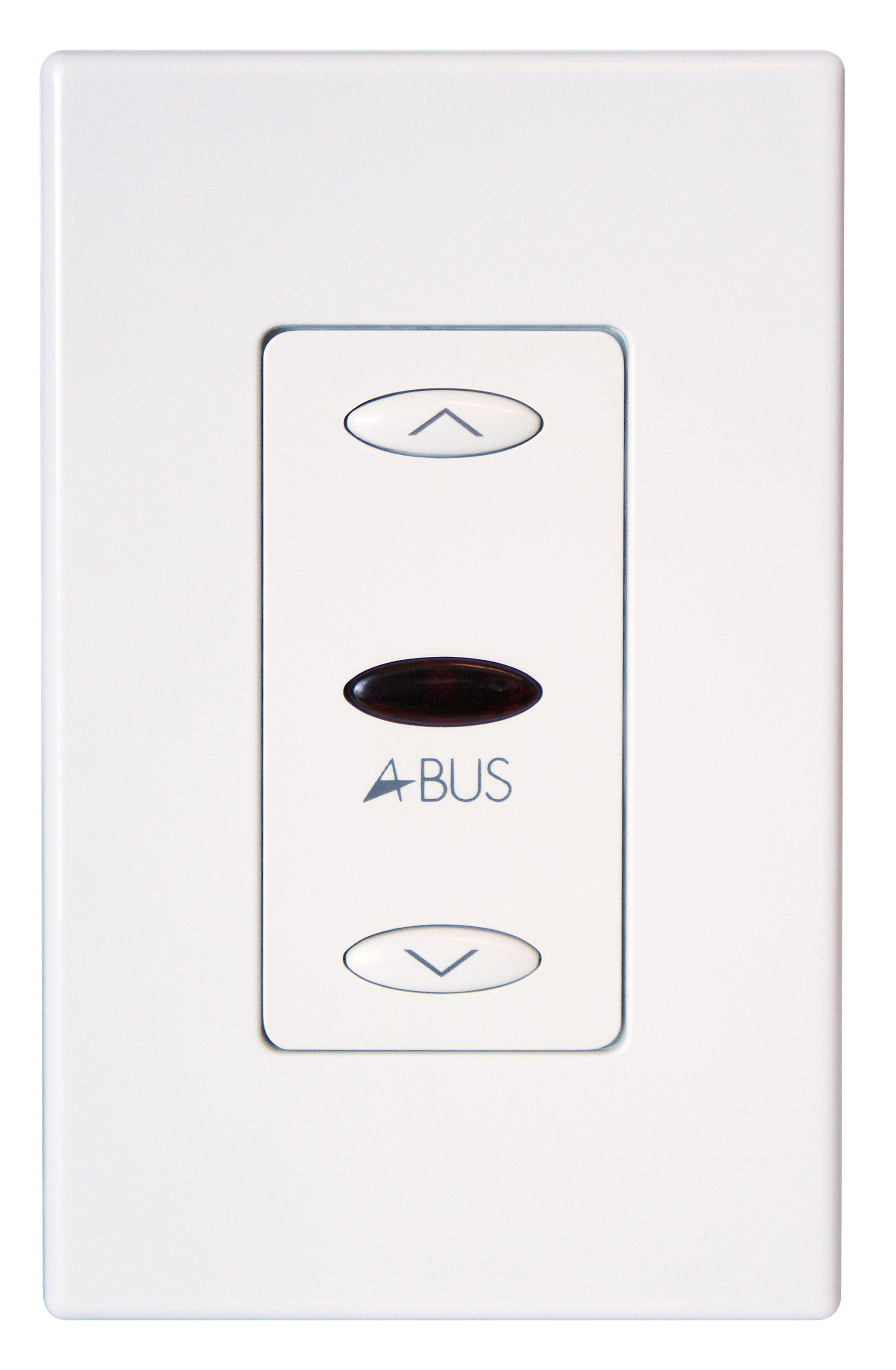

AB-43
A-BUS IR Touch-Button Volume Control Module
CONTROL: Touch button and remote volume control
IR: Repeating with confirmation LED
SPEAKERS: Drives one pair of speakers (4 - 8 ohms)
STATUS: Muting facility with indicator LED
INPUT: RJ-45
OUTPUT: screw terminal (up to 14 gauge)
SIZE: Profile: 13mm, mounting depth: 47mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate
AB-42S
Touch Button AVC with IR
CONTROL: Volume up/down, Local on/off, source selection via remote
IR: Repeating with confirmation LED
SPEAKERS: Drives one pair of speakers (4 - 8 ohms)
STATUS: Indicator LED
INPUT: RJ-45 T568A standard
OUTPUT: screw terminal (up to 14 gauge)
SIZE: Profile: 13mm, mounting depth: 47mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate

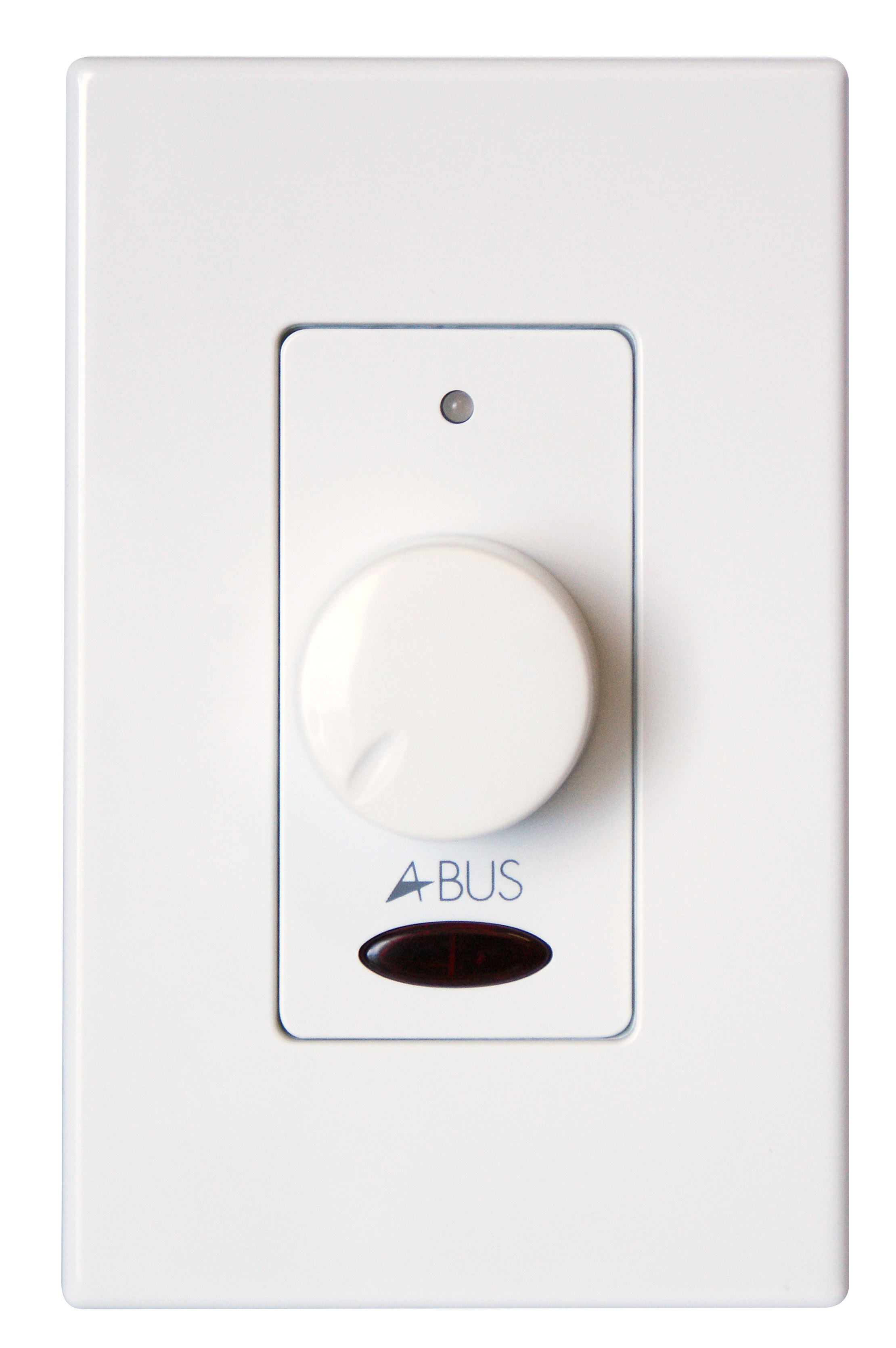

AB-39
A-BUS IR Rotary Volume Control Module
CONTROL: Rotary volume control
IR: Repeating with confirmation LED
SPEAKERS: Drives one pair of speakers (4 - 8 ohms)
STATUS: Muting facility
INPUT: RJ-45
OUTPUT: screw terminal (up to 14 gauge)
SIZE: Profile: 30mm, mounting depth: 47mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate

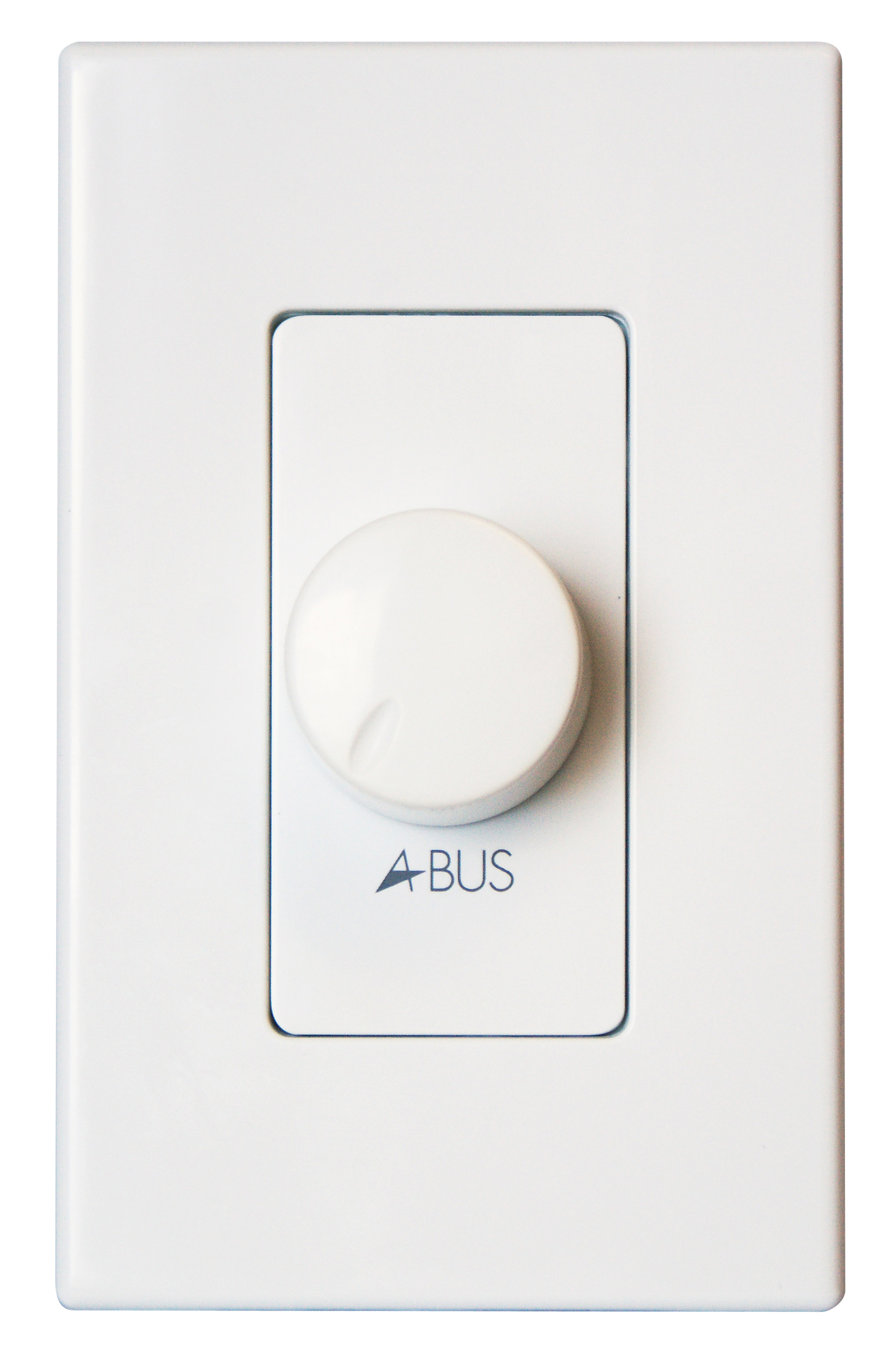

AB-20
A-BUS Rotary Volume Control Module
CONTROL: Rotary volume control
IR: None
SPEAKERS: Drives one pair of speakers (4 - 8 ohms)
INPUT: RJ-45
OUTPUT: screw terminal (up to 14 gauge)
SIZE: Profile: 30mm, mounting depth: 47mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate
