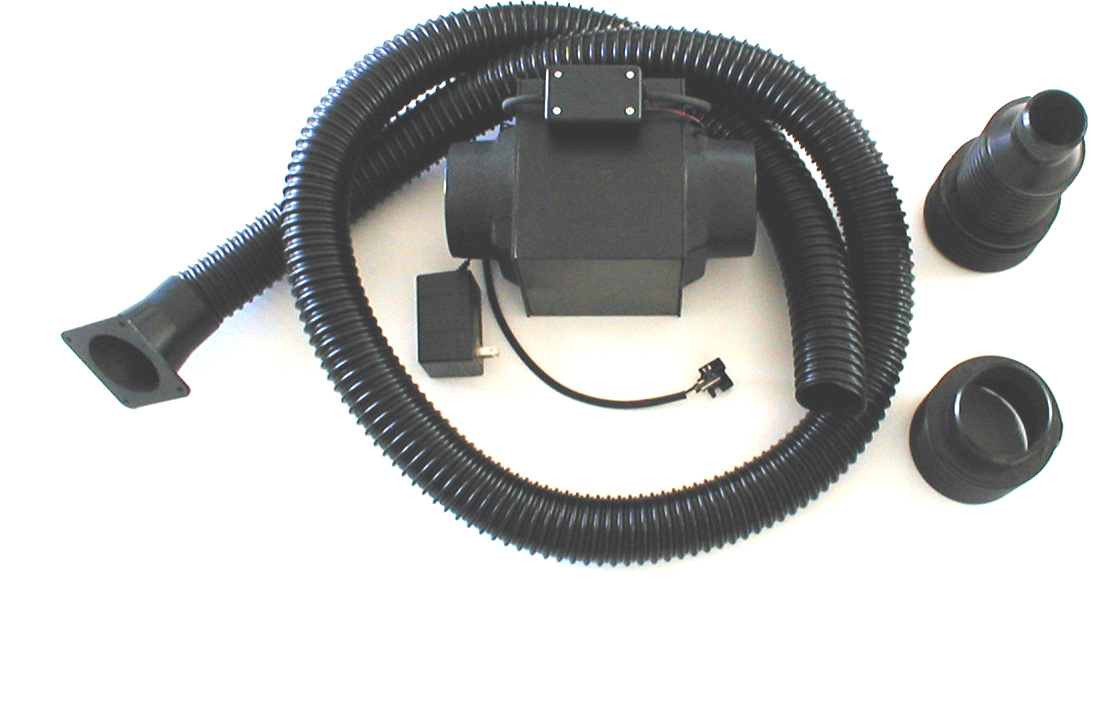

COOL CUBE 2

Cool Cube 2

5 x 120mm fans
Thematically control board
Power supply
Externally mount using 50.8mm x 1800mm tube
Air flow 12-18cfm
Trigger temp 33°c
Dimensions: 152 x 254 x 165mm (whd)

For Australia and NZ Sales Only

COOL CUBE 3

Cool Cube 3

5 x 120mm fans
Thematically control board
Power supply
Externally mount using 76.2mm x 1800mm tube
Air flow 25-40cfm
Trigger temp 33°c
Dimensions: 152 x 254 x 165mm (whd)

For Australia and NZ Sales Only

COOL CUBE 4

Cool Cube 4

5 x 120mm fans
Thematically control board
Power supply
Externally mount using 101.6mm x 1800mm tube
Air flow 35-70cfm
Trigger temp 33°c
Noise level 18-30dB
Dimensions: 152 x 254 x 165mm (whd)

For Australia and NZ Sales Only

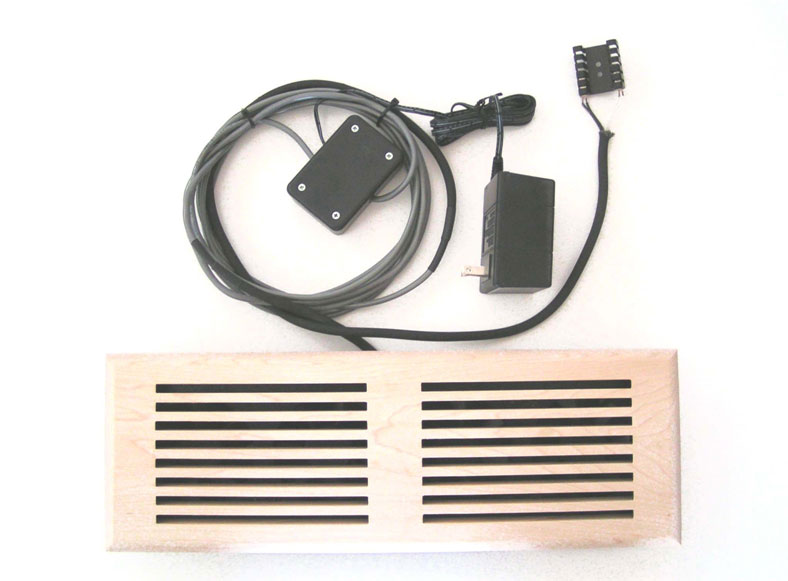

COOL VENT 2-BW

Cool Vent 2

Designed to fit into wood finished cabinets

4 x 80mm fans
Power supply
Thermostat controlled
Walnut finish
Noise level 26-28dB
Air flow 20-30 CFM
Trigger temp 33°c
Opening 102 x 356mm
Size 140 x 394mm (hl)

For Australia and NZ Sales Only

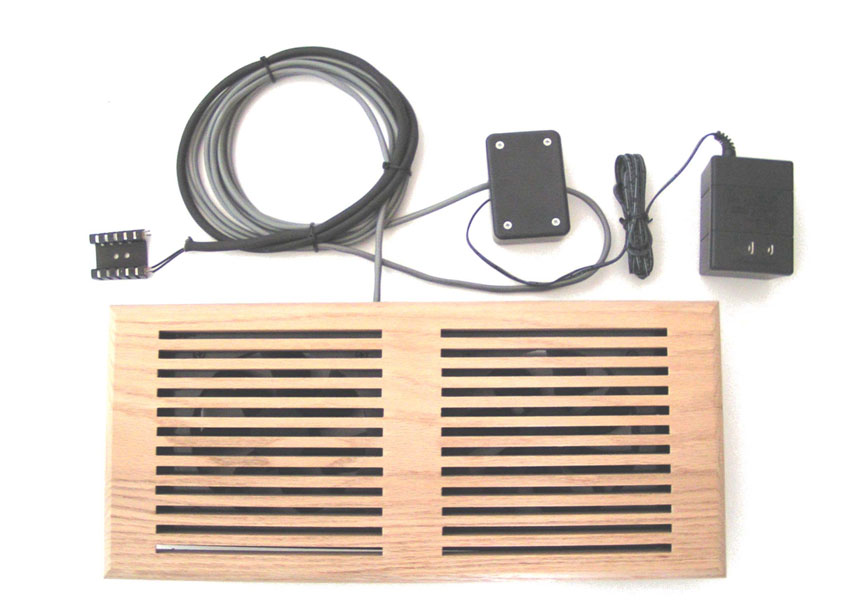

COOL VENT 3-BW

Cool Vent 3

Designed to fit into wood finished cabinets

2 x 120mm fans
Power supply
Thermostat controlled
Walnut finish
Noise level 24-26dB
Air flow 30-50 CFM
Trigger temp 33°c
Size 394 x 181mm (lh)
Opening 152 x 356mm

For Australia and NZ Sales Only

COOL LINE 1 Alum

Cool Line 1

1 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 16dB
Air flow 20/30cfm
Multi-speed Proportional
Opening 361mm x 64mm
Finished size 391mm x 89mm

For Australia and NZ Sales Only

COOL LINE 1W-INTAKE

Cool Line 1 Intake Only Version

1 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 16dB
Air flow 20/30cfm
Multi-speed Proportional
Opening 375mm x 51mm
Finished size 416mm x 89mm

For Australia and NZ Sales Only

COOL LINE 1 WOOD

Cool Line 1 Exhaust Only Version

1 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 16dB
Air flow 20/30cfm
Multi-speed Proportional

For Australia and NZ Sales Only

COOL LINE 2 Alum

Cool Line 2

2 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 19dB
Air flow 30/50cfm
Multi-speed Proportional
Opening 740mm x 64mm
Finished size 768mm x 86mm

For Australia and NZ Sales Only

COOL LINE 2W-INTAKE

Cool Line 2 Intake Only Version

2 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 19dB
Air flow 30/50cfm
Multi-speed Proportional
Opening 718mm x 54mm
Finished size 762mm x 89mm

For Australia and NZ Sales Only

COOL LINE 2/ex-wood

Cool Line 2 Exhaust Only Version

2 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 19dB
Air flow 30/50cfm
Multi-speed Proportional

For Australia and NZ Sales Only

SYSTEM 4

Cooling System 4

Needs only ONE small opening for fresh air intake - and NO additional openings for exhaust!

6 x 80mm fans
Temperature control board
Power supply
Noise level 19-22 dB
Air flow 20-30 cfm
Trigger temp 32-38°c
Size 216 x 114mm (lh)

For Australia and NZ Sales Only
