COOL LINE 1 Alum

Cool Line 1

1 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 20dB
Air flow 20cfm
Multi-speed
Opening 361mm x 64mm
Finished size 391mm x 89mm

For Australia and NZ Sales Only

COOL LINE 1/in-wood

Cool Line 1 Intake Only Version

1 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 20dB
Air flow 20cfm
Multi-speed
Opening 375mm x 51mm
Finished size 416mm x 89mm

For Australia and NZ Sales Only

COOL LINE 1/ex-wood

Cool Line 1 Exhaust Only Version

1 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 20dB
Air flow 20cfm
Multi-speed

For Australia and NZ Sales Only

COOL LINE 2 Alum

Cool Line 2

2 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 22dB
Air flow 40cfm
Multi-speed
Opening 740mm x 64mm
Finished size 768mm x 86mm

For Australia and NZ Sales Only

COOL LINE 2/in-wood

Cool Line 2 Intake Only Version

2 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 22dB
Air flow 40cfm
Multi-speed
Opening 718mm x 54mm
Finished size 762mm x 89mm

For Australia and NZ Sales Only

COOL LINE 2/ex-wood

Cool Line 2 Exhaust Only Version

2 x 300mm cross flow
Power supply
Wall/cup board or kick board mount
Noise level 22dB
Air flow 40cfm
Multi-speed

For Australia and NZ Sales Only

COOL CUBE 2

Cool Cube 2

5 x 120mm fans
Thematically control board
Power supply
Externally mount using 50.8mm x 1800mm tube
Air flow 12-18cfm
Trigger temp 33°c

For Australia and NZ Sales Only

COOL CUBE 3

Cool Cube 3

5 x 120mm fans
Thematically control board
Power supply
Externally mount using 76.2mm x 1800mm tube
Air flow 25-40cfm
Trigger temp 33°c

For Australia and NZ Sales Only

COOL CUBE 4

Cool Cube 4

5 x 120mm fans
Thematically control board
Power supply
Externally mount using 101.6mm x 1800mm tube
Air flow 35-70cfm
Trigger temp 33°c
Noise level 20-22dB

For Australia and NZ Sales Only

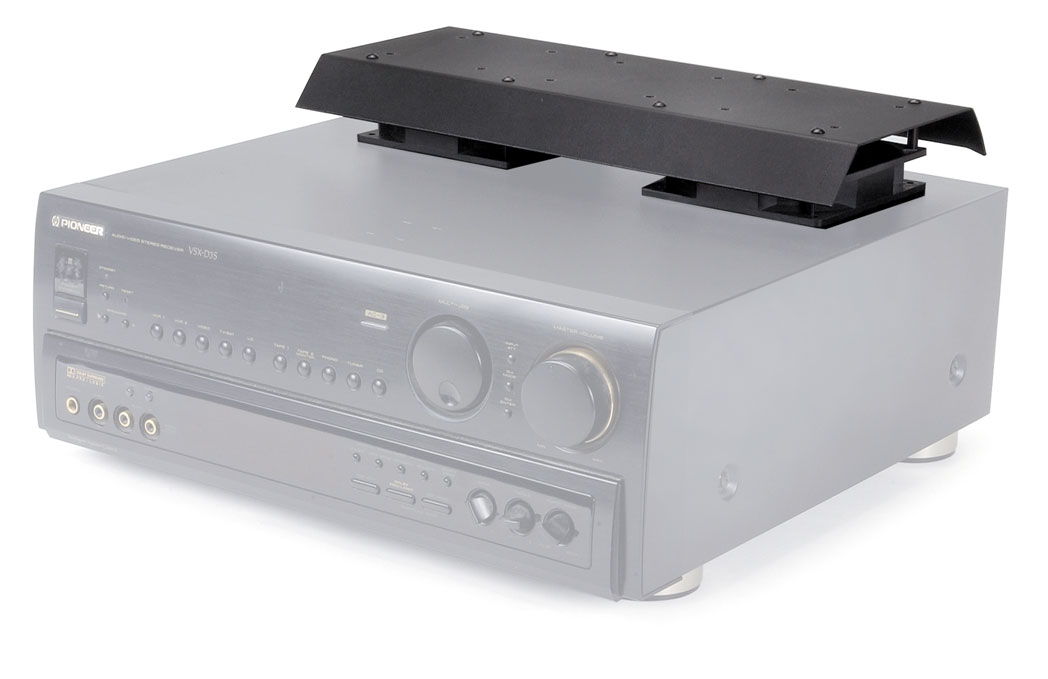

COOL IT

Cool It

2 x 120mm fans
Power supply
Thermostat controlled variable
Noise level 19dB
Air flow 20cfm
Trigger temp 33°c
Size 381mm x 171mm x 51mm (lwh)

For Australia and NZ Sales Only

COOL STACK 1-IN

Cool Stack 1-IN

For stacks or rack mounting 1U IN-TAKE

4 x 80mm fans
1 Unit rack mount enclosure
Power supply
Thermostat controlled variable
Noise level 21dB
Air flow 20-60cfm
Trigger temp 33°c
Size 483 x 44 x 203mm

Also available in an Exhaust version
COOL STACK 1-EXT

For Australia and NZ Sales Only

COOL STACK 2

Cool Stack 2

For stacks or rack mounting 2U

6 x 120mm fans
2 Unit rack mount enclosure
Power supply
Thermostat controlled variable
Noise level 22-36dB
Air flow 20-130cfm
Trigger temp 33°c
Size 483 x 457 x 123mm (wdh)

For Australia and NZ Sales Only

COOL STACK 3

Cool Stack 3

For stacks or rack mounting 1U

4 x 120mm fans
1 Unit rack mount enclosure
Power supply
Thermostat controlled variable
Noise level 26dB
Air flow 20-70cfm
Trigger temp 33°c
Size 483 x 457 x 44mm (wdh)

For Australia and NZ Sales Only

COOL STICK 8

Cool Stick 8

1U Rack mounted

8 x 50mm mini fans
Power supply
Thermostat controlled variable
Rack mount
Noise level 21dB
Air flow 10-30cfm
Trigger temp 33° c
Size 457 x 64 x 22mm (lwd)

For Australia and NZ Sales Only

COOL STICK 16

Cool Stick 16

1U Rack mounted

16 x 50mm mini fans
Power supply
Thermostat controlled variable
Rack mounted
Noise level 18dB
Air flow 15-60cfm
Trigger temp 33°c
Size 914 x 64 x 22mm (lwd)

For Australia and NZ Sales Only

COOL VENT 1-BW

Cool Vent 1

Designed to fit into wood finished cabinets

6 x 50mm mini fans
Power supply
Thermostat controlled on/off
Black walnut finish
Noise level 22dB
Air flow 10 CFM
Trigger temp 33°c

For Australia and NZ Sales Only

COOL VENT 2-BW

Cool Vent 2

Designed to fit into wood finished cabinets

4 x 80mm fans
Power supply
Thermostat controlled variable
Black walnut finish
Noise level 26-28dB
Air flow 20-30 CFM
Trigger temp 33-37°c
Opening 102 x 356mm
Size 140 x 394mm

For Australia and NZ Sales Only

COOL VENT 3-BW

Cool Vent 3

Designed to fit into wood finished cabinets

2 x 120mm fans
Power supply
Thermostat controlled variable
Black walnut finish
Noise level 21dB
Air flow 30-50 CFM
Trigger temp 33°c
Opening 152 x 356mm
Size 181 x 394mm

For Australia and NZ Sales Only

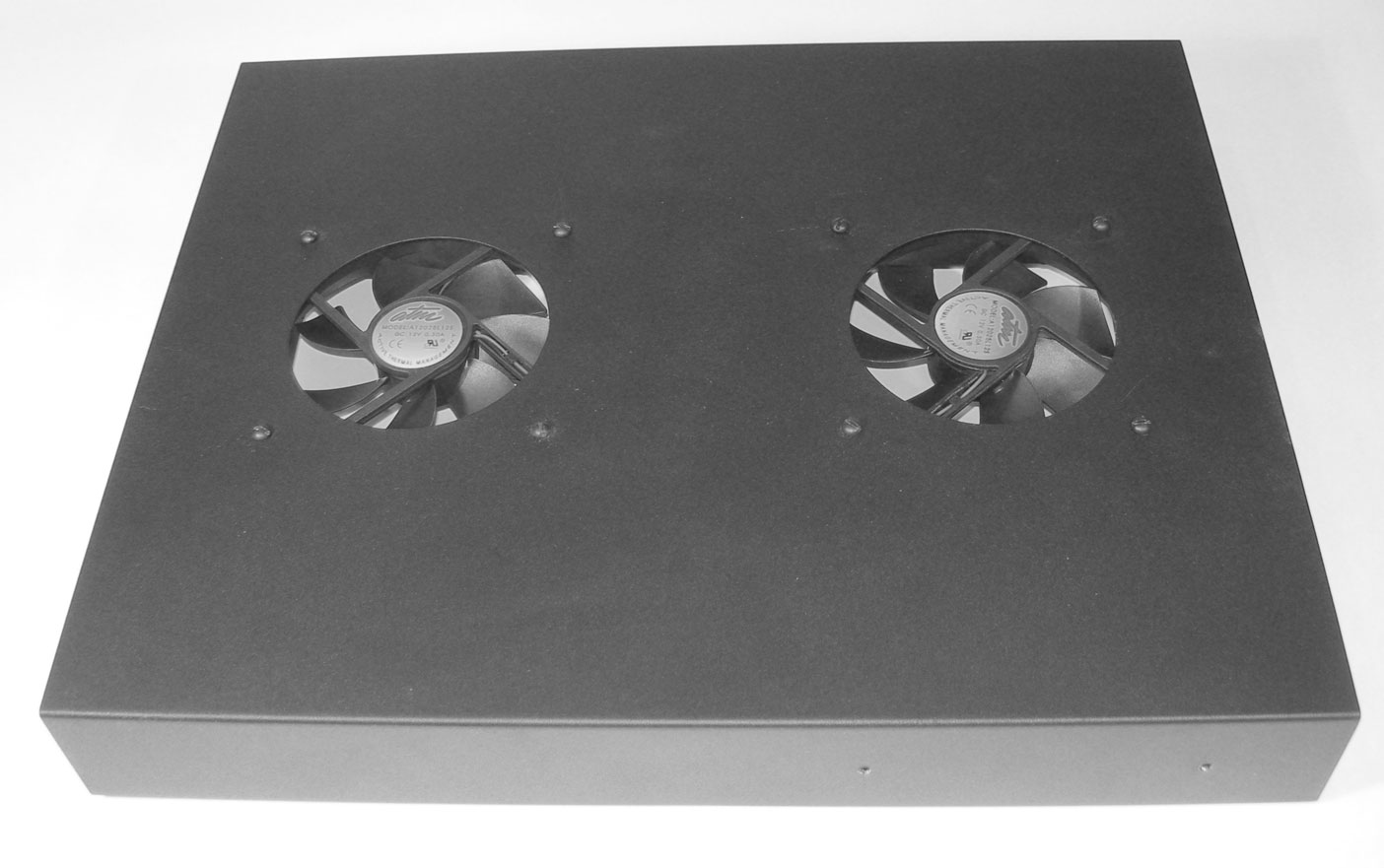

DUAL MODE

Dual Mode Cooler

Designed to fit under, in-between or on top of a stack.
Intake or exhaust

2 x 120mm fans
Power supply
Thermostat controlled variable
Stack mount
Noise level 20dB
Air flow 30cfm
Trigger temp 33°c
Size 356 x 406 x 54mm (dwh)

For Australia and NZ Sales Only

SEC 1

Small Enclosure System

Small enclosure system

2 x 80mm panel mounted fans
Thematically control board
Power supply
Noise level 19 dB
Air flow 30 cfm
Trigger temp 33°c
Size 216 x 114 x 44mm (lwd)

For Australia and NZ Sales Only

SYSTEM 2

Cooling System 2

Ideal for mid size enclosures

2 x 120mm fans
Temperature control board
Power supply
Noise level 24 dB
Air flow 10-40 cfm
Trigger temp 24-90°c

For Australia and NZ Sales Only

SYSTEM 2/RM

Cooling System 2 Rack Mount

Designed for a mid size rack system

3 x 120mm fans
Temperature control board
Power supply
Noise level 26 dB
Air flow 15-45 cfm
Trigger temp 24-90°c

For Australia and NZ Sales Only

SYSTEM 3

Cooling System 3

Ideal for small enclosures

2 x 80mm fans
Temperature control board
Power supply
Noise level 19-23 dB
Air flow 30-38 cfm
Trigger temp 33°c

For Australia and NZ Sales Only

SYSTEM 4

Cooling System 4

Needs only ONE small opening for fresh air intake - and NO additional openings for exhaust!

6 x 80mm fans
Temperature control board
Power supply
Noise level 19-22 dB
Air flow 20-30 cfm
Trigger temp 32-38°c

For Australia and NZ Sales Only
